SMART FUSION
A dedicated Sony camera focus control integration system for LIVE AIR 4 SMART
PRE-ORDER PRODUCT
Note:
* If you pre-order SMART FUSION while purchasing LIVE AIR 4 SMART, we will ship LIVE AIR 4 SMART first.
If you have any special requirements, please contact us.
1. SMART FUSION is a pre-order product. The shipment will be dispatched within 90 days after the pre-order is successfully confirmed.
2. Orders will be shipped in the order in which they are placed. The shipping time may vary depending on the destination region and the selected shipping option.
3. SMART FUSION must be used together with the LiDAR motor of LIVE AIR 4 SMART. If you do not own LIVE AIR 4 SMART, please purchase it first.
4. SMART FUSION currently only supports Sony Alpha and FX series cameras with a traditional locking E-mount, such as FX3, FX30 and similar models.

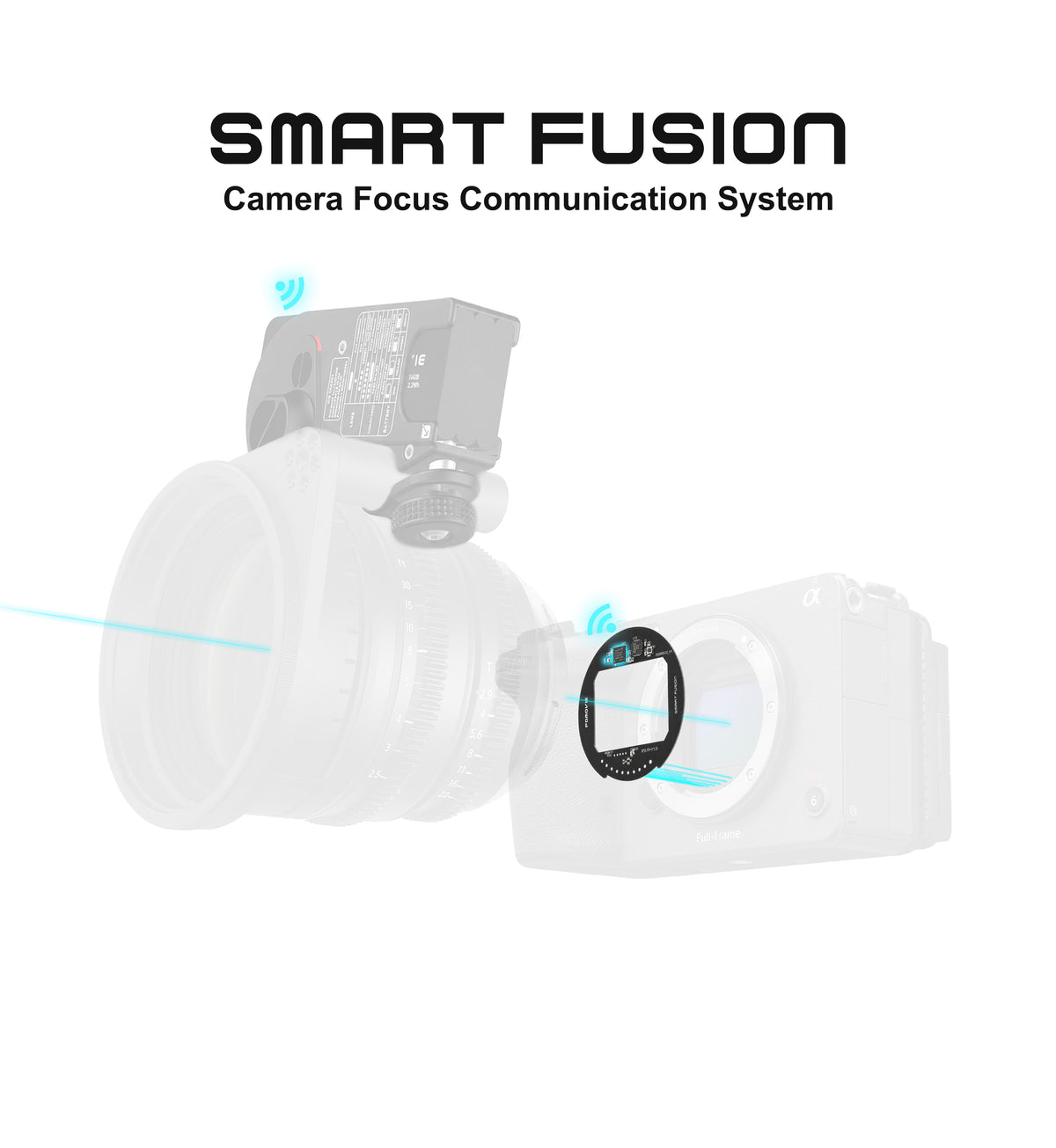

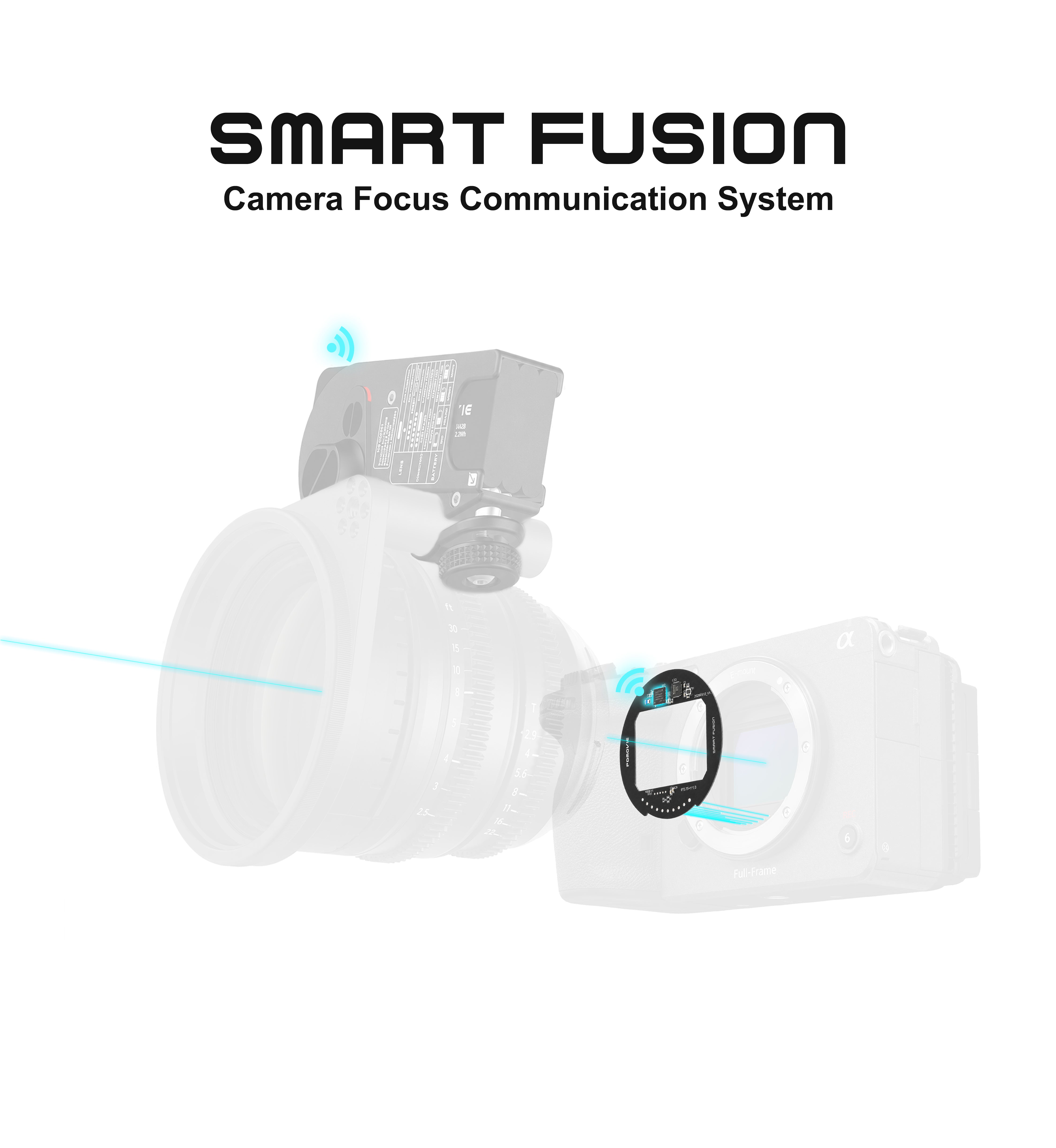

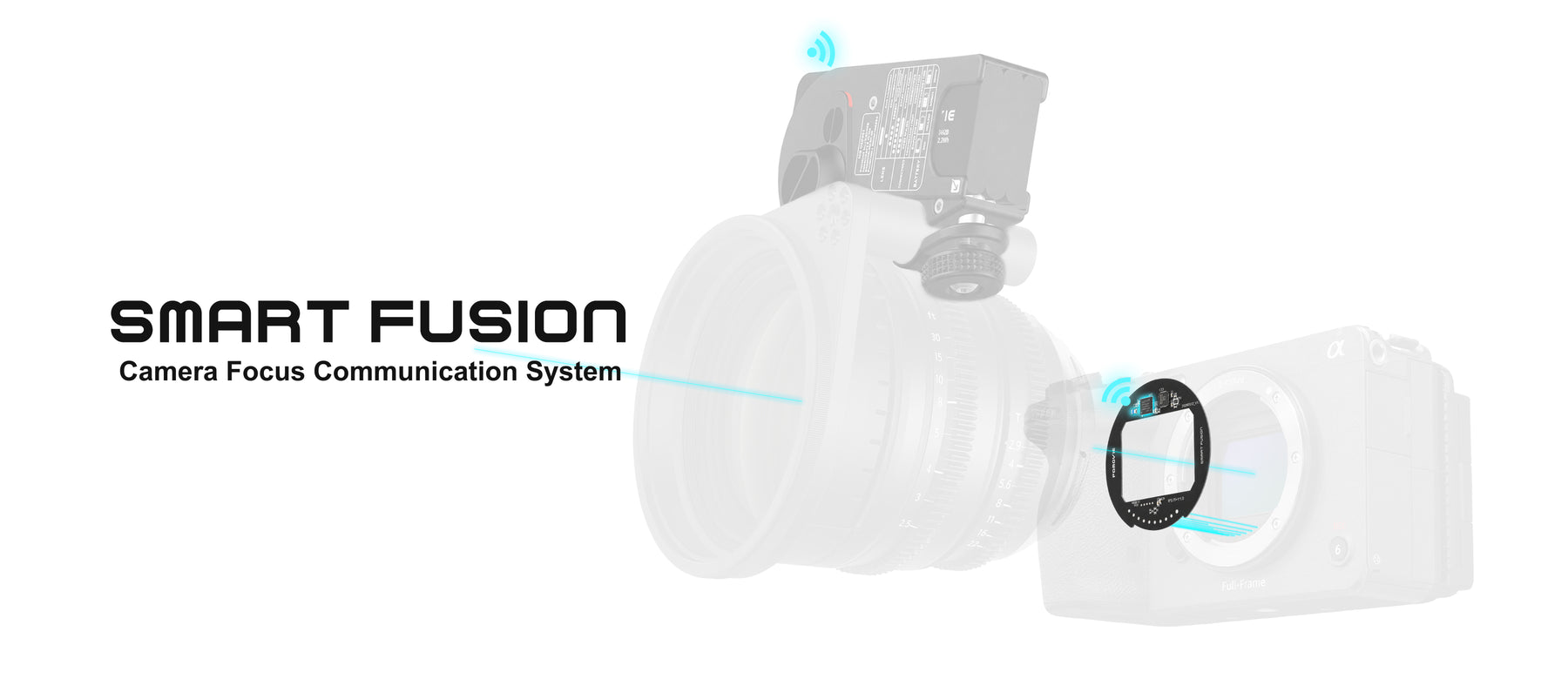

SMART FUSION is a Sony camera integration system designed specifically for LIVE AIR 4 SMART, enabling communication between the LIVE AIR 4 SMART LiDAR motor and Sony cameras.

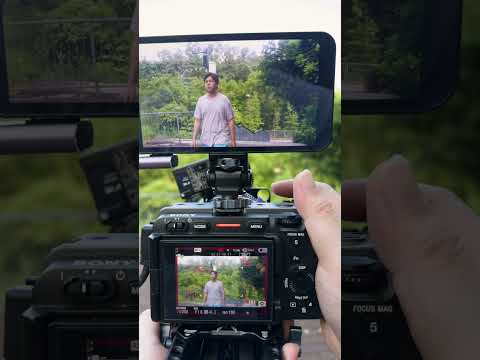

It is designed to apply Sony’s built-in focusing functions to native E-mount manual focus lenses, or PL cinema lenses mounted via an E-to-PL adapter, enabling autofocus control that feels closer to a native lens experience.
The original design of SMART FUSION had already achieved an industry-leading level of compactness and lightweight performance, representing a unique breakthrough in miniaturization. But we did not stop there.

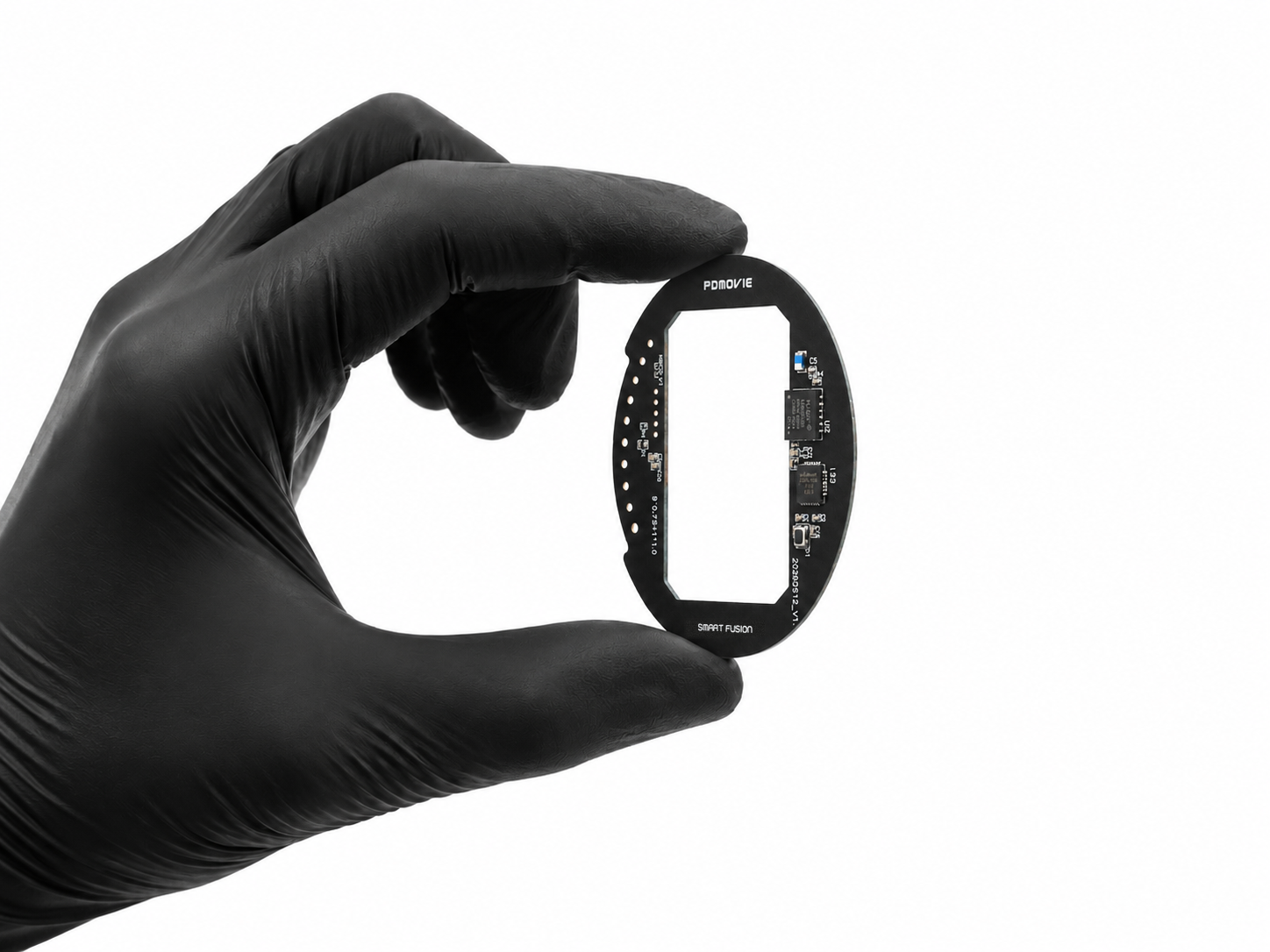

To further reduce the burden on the setup and improve the user experience, we overcame multiple challenges in structural and electronic design. As a result, SMART FUSION has been further optimized into an even thinner and lighter form than a coin, with its weight dramatically reduced compared with the first generation, achieving an almost hundredfold level of weight reduction.
This allows more users to experience this camera integration system at a lower cost.
Powerful Performance in a Slim Body

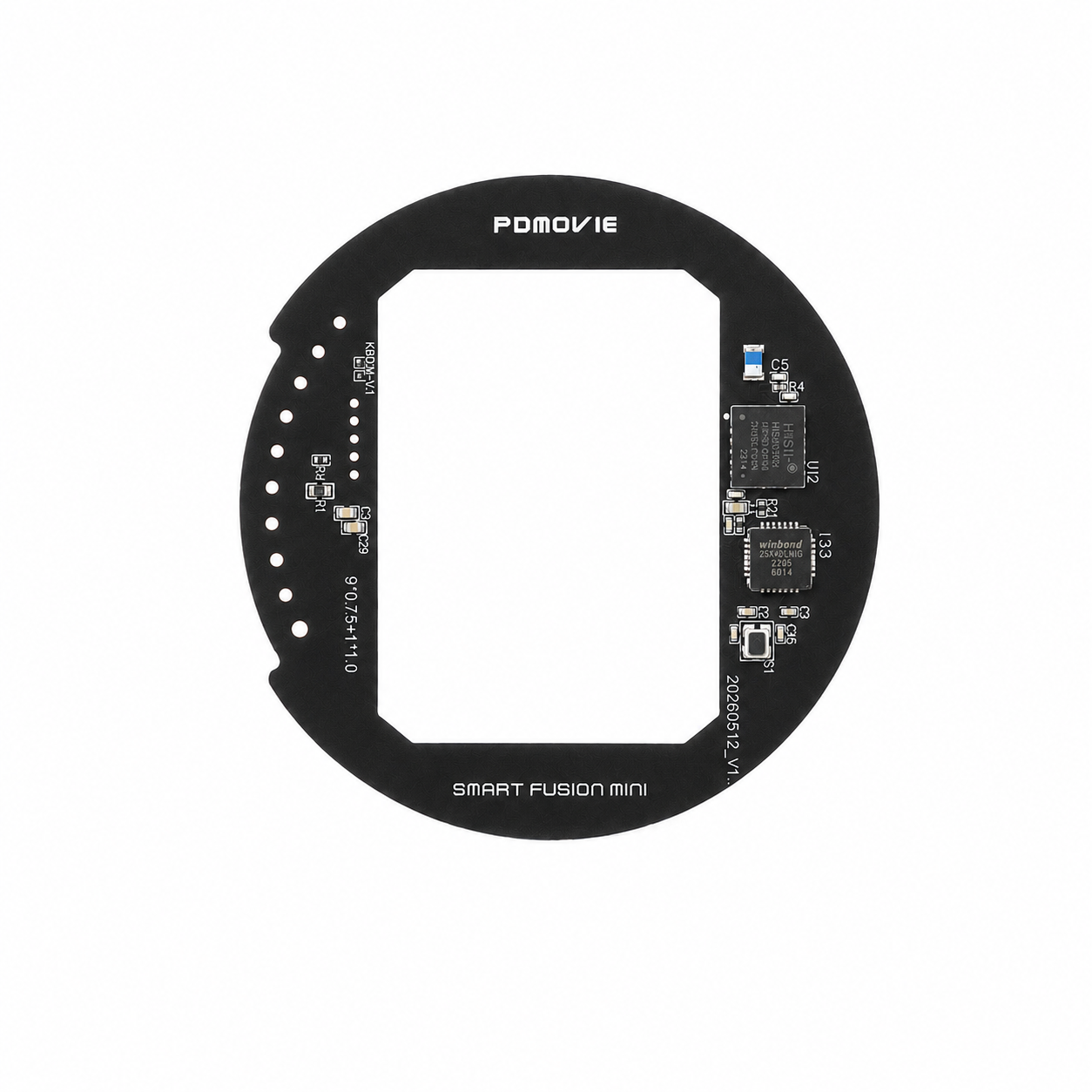

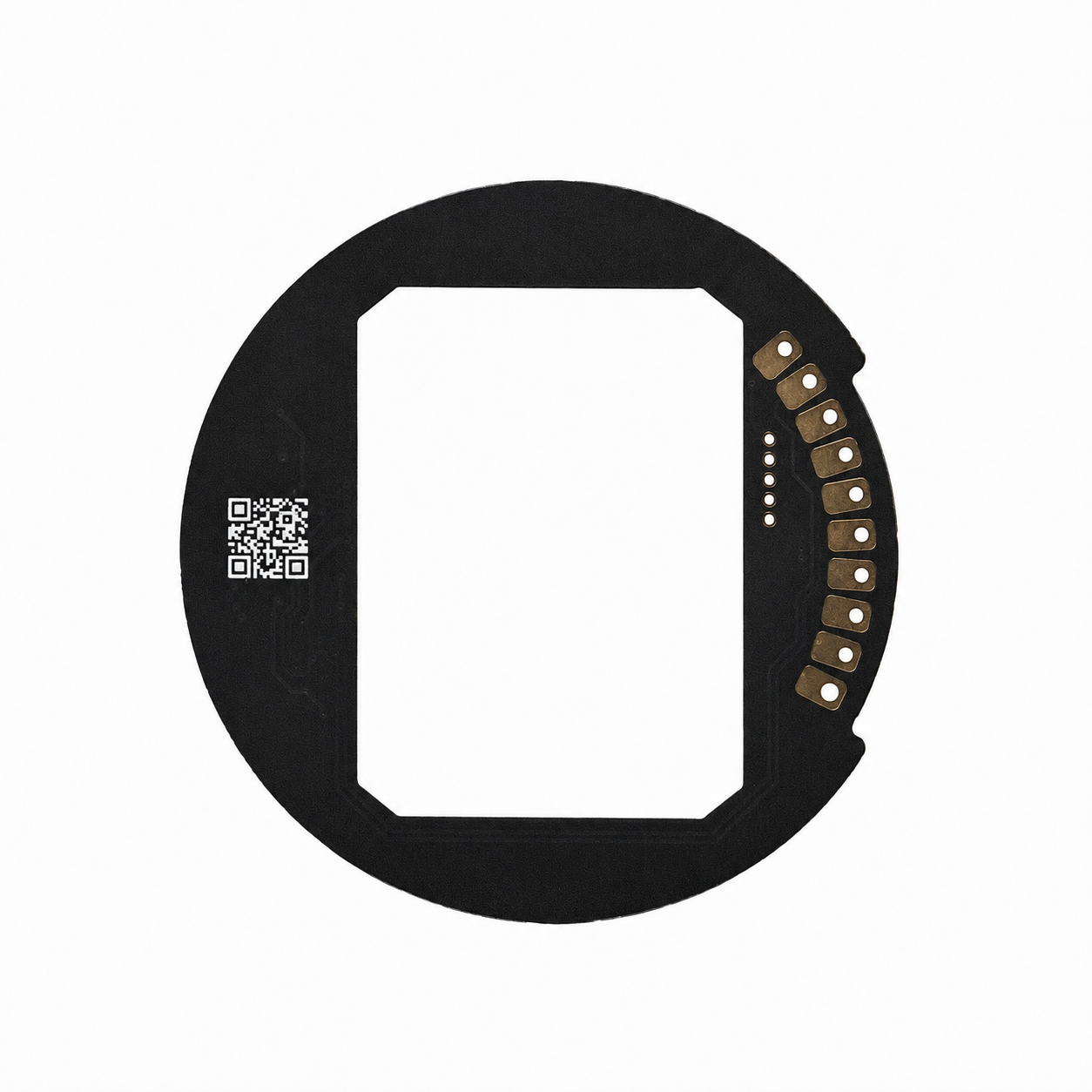

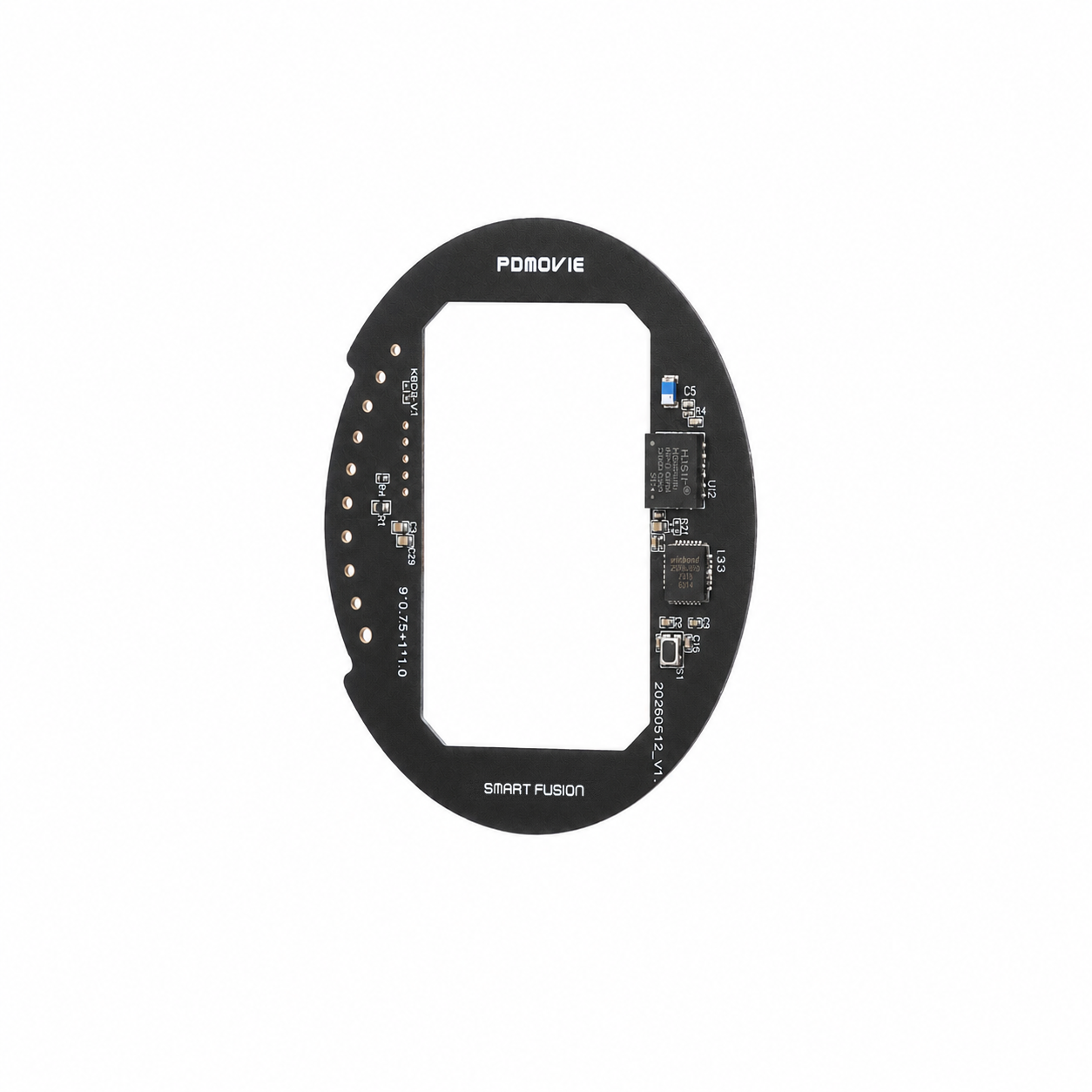

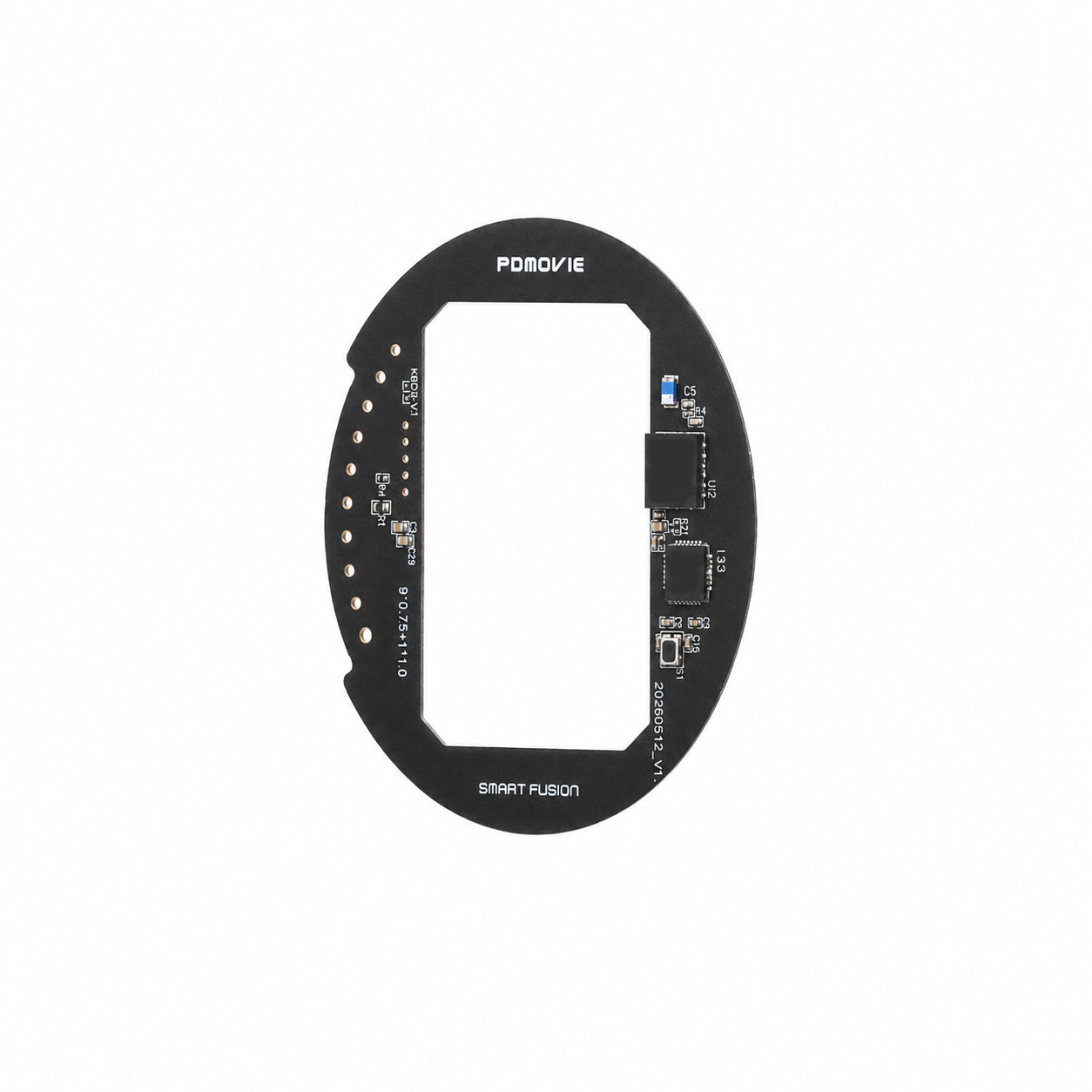

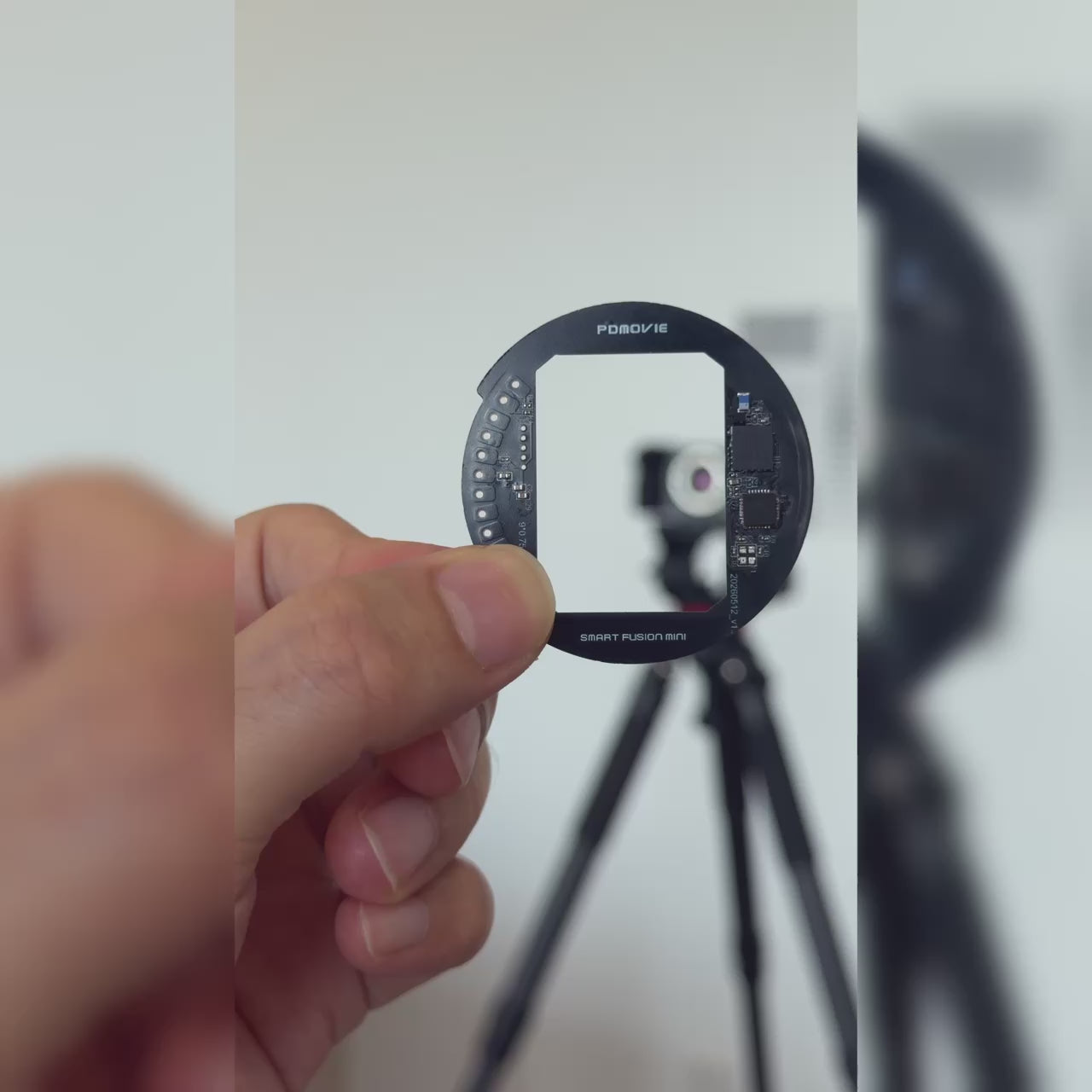

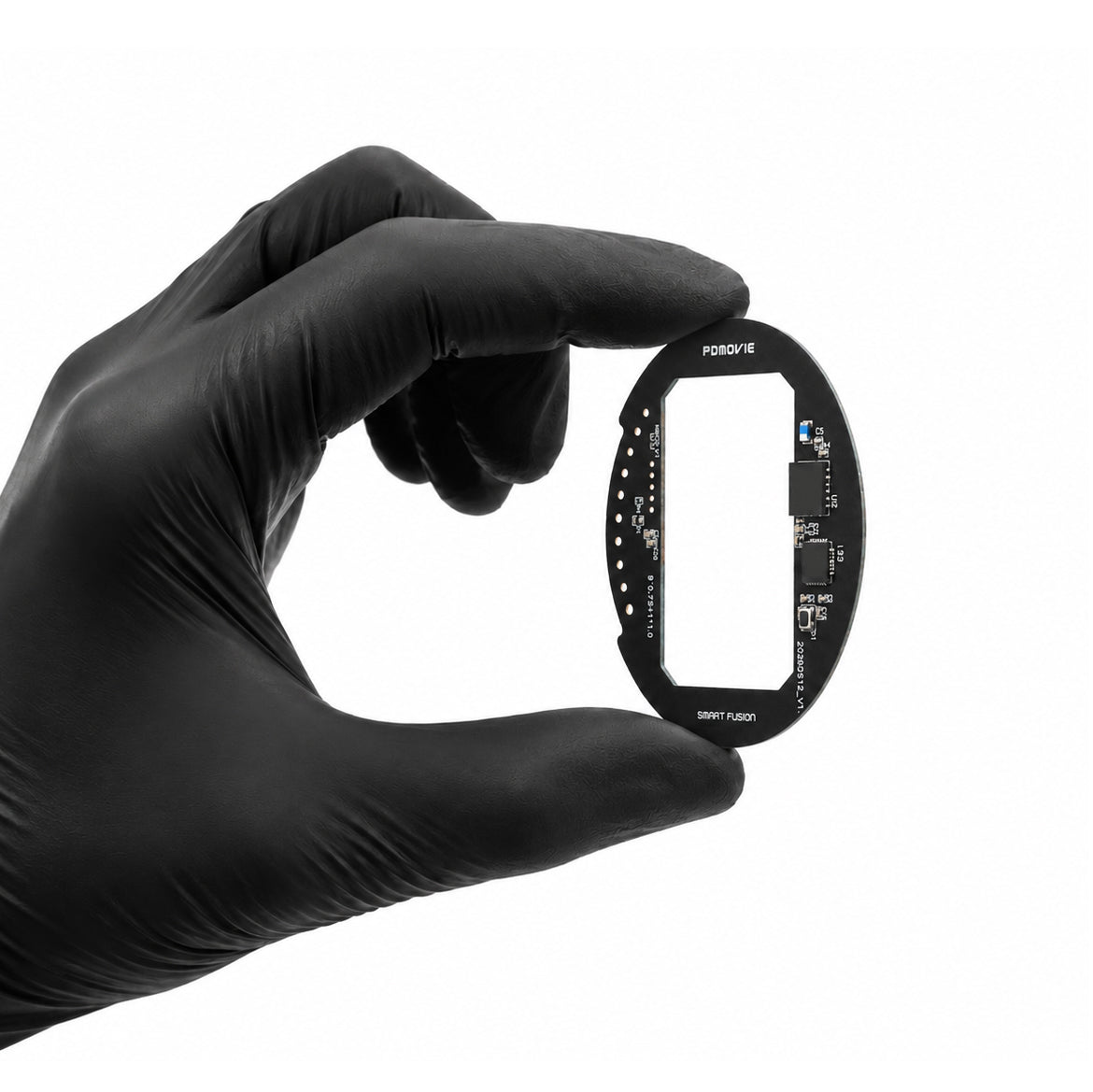

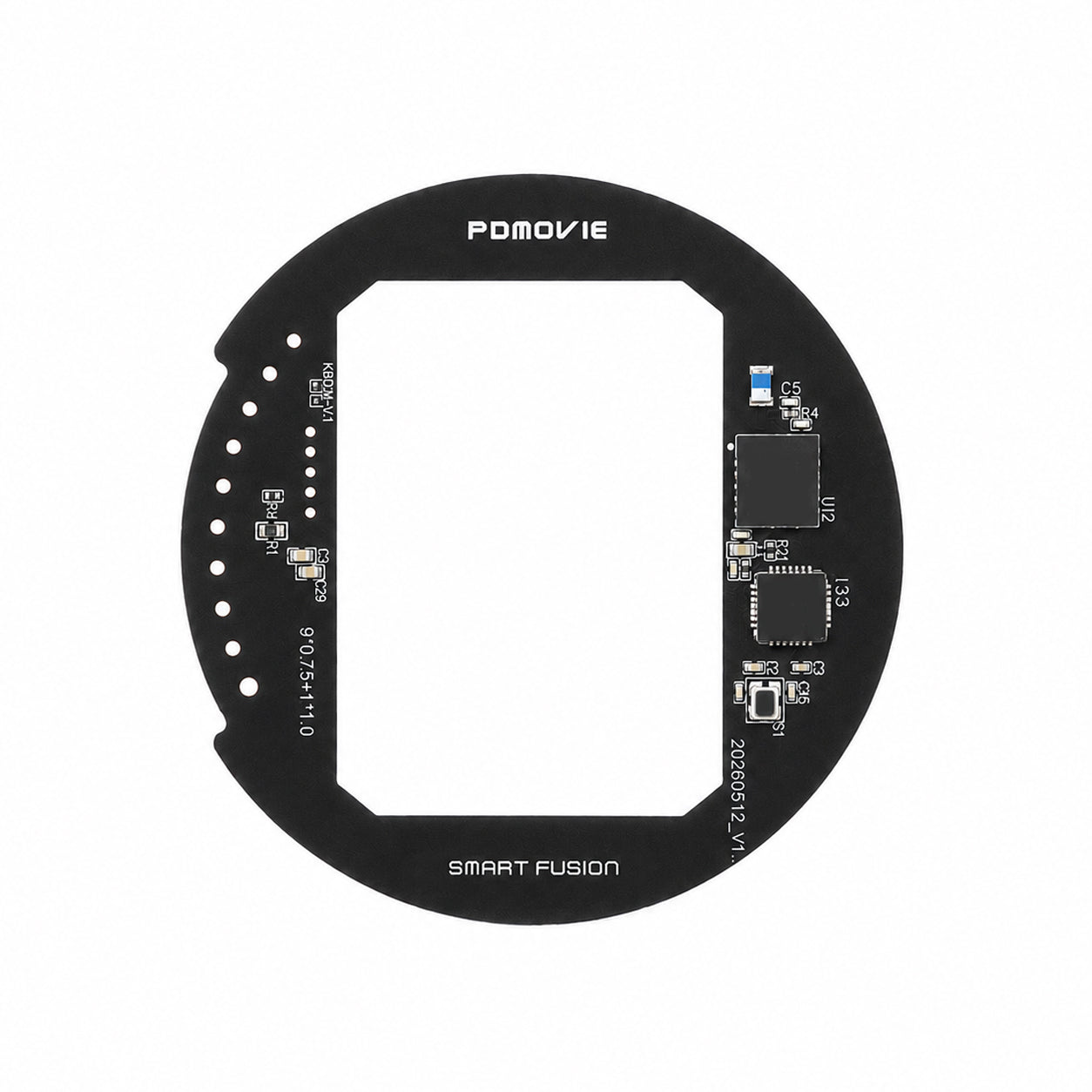

SMART FUSION weighs only 1.2 g and measures just DIA 46.7 mm × THK 0.6 mm. Inside its slim and compact body, it integrates a chip, Bluetooth module, antenna, and multiple electronic components.
Wireless Transmission

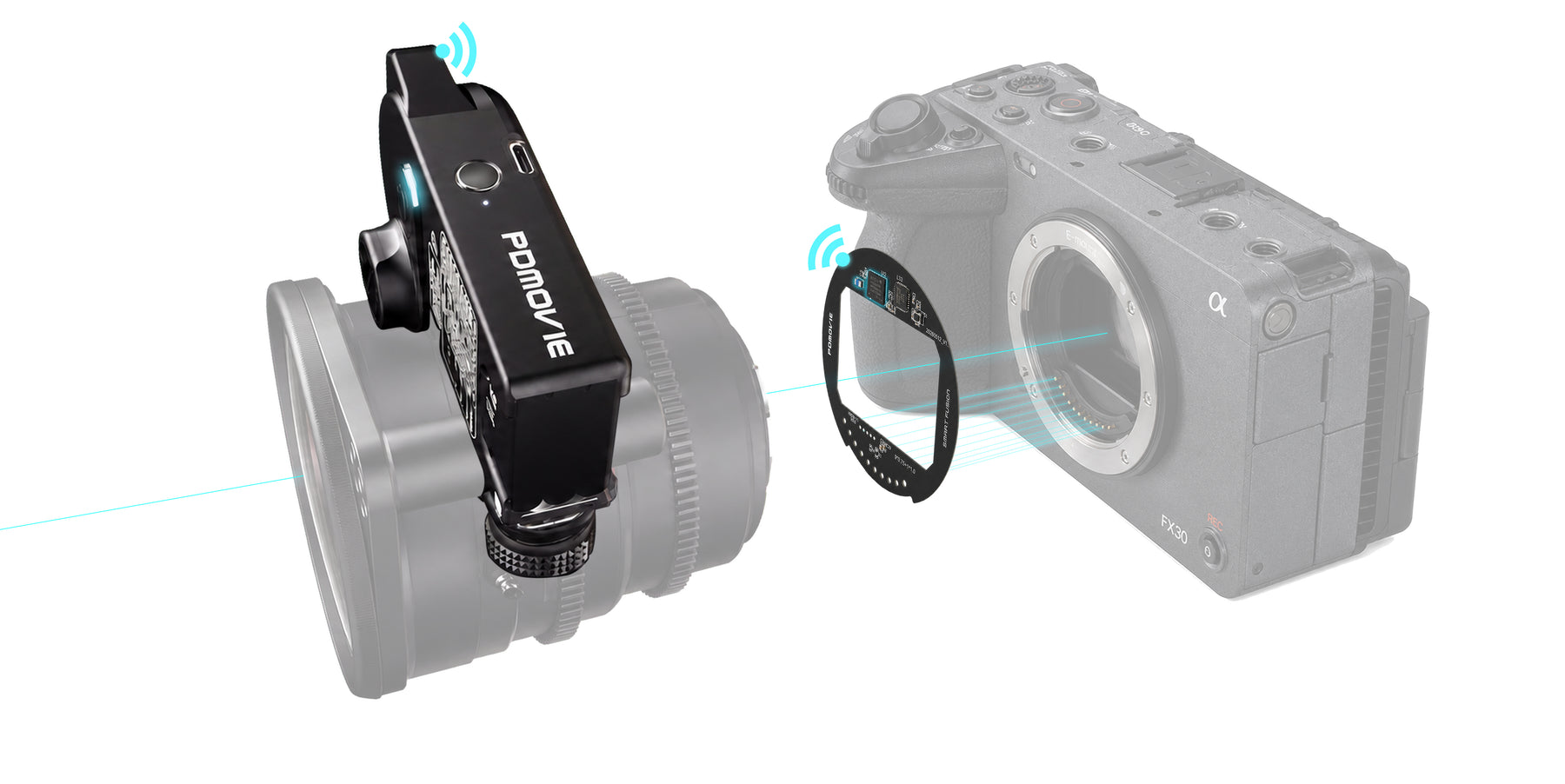

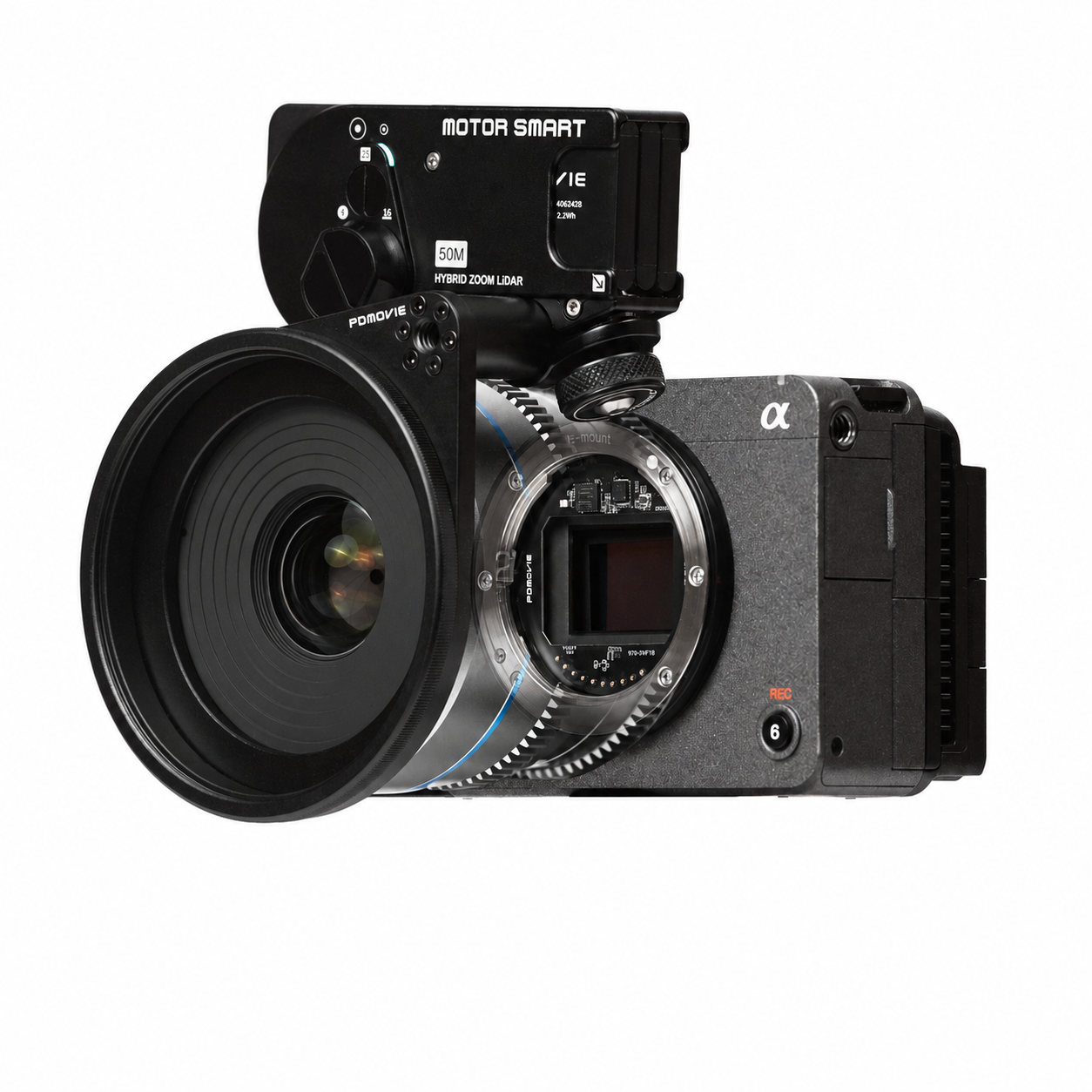

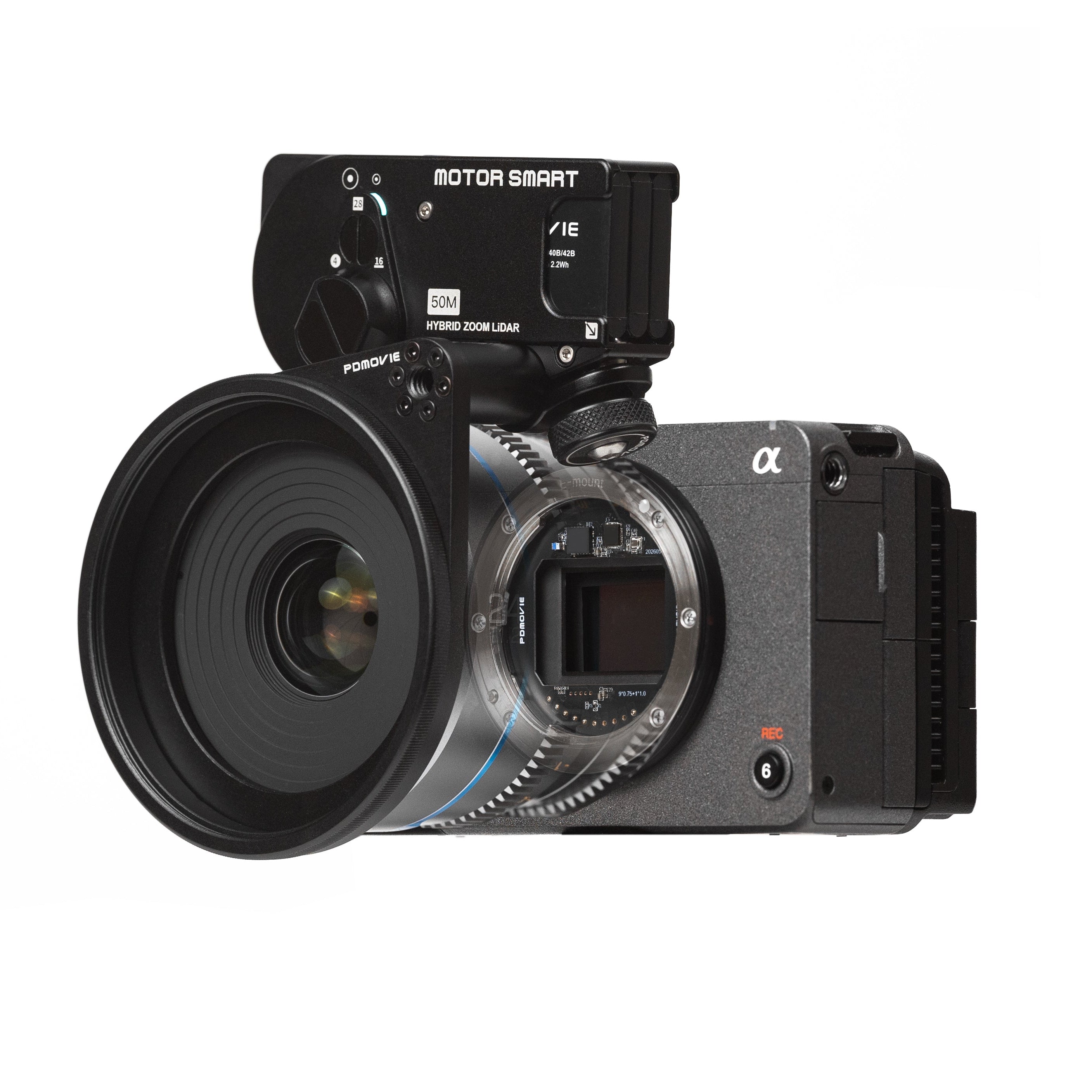

SMART FUSION first establishes communication with the camera, then wirelessly connects to the LiDAR motor through its antenna and Bluetooth modules. This allows focus commands sent from the camera to drive the motor.
Twist, Press, and You’re Ready

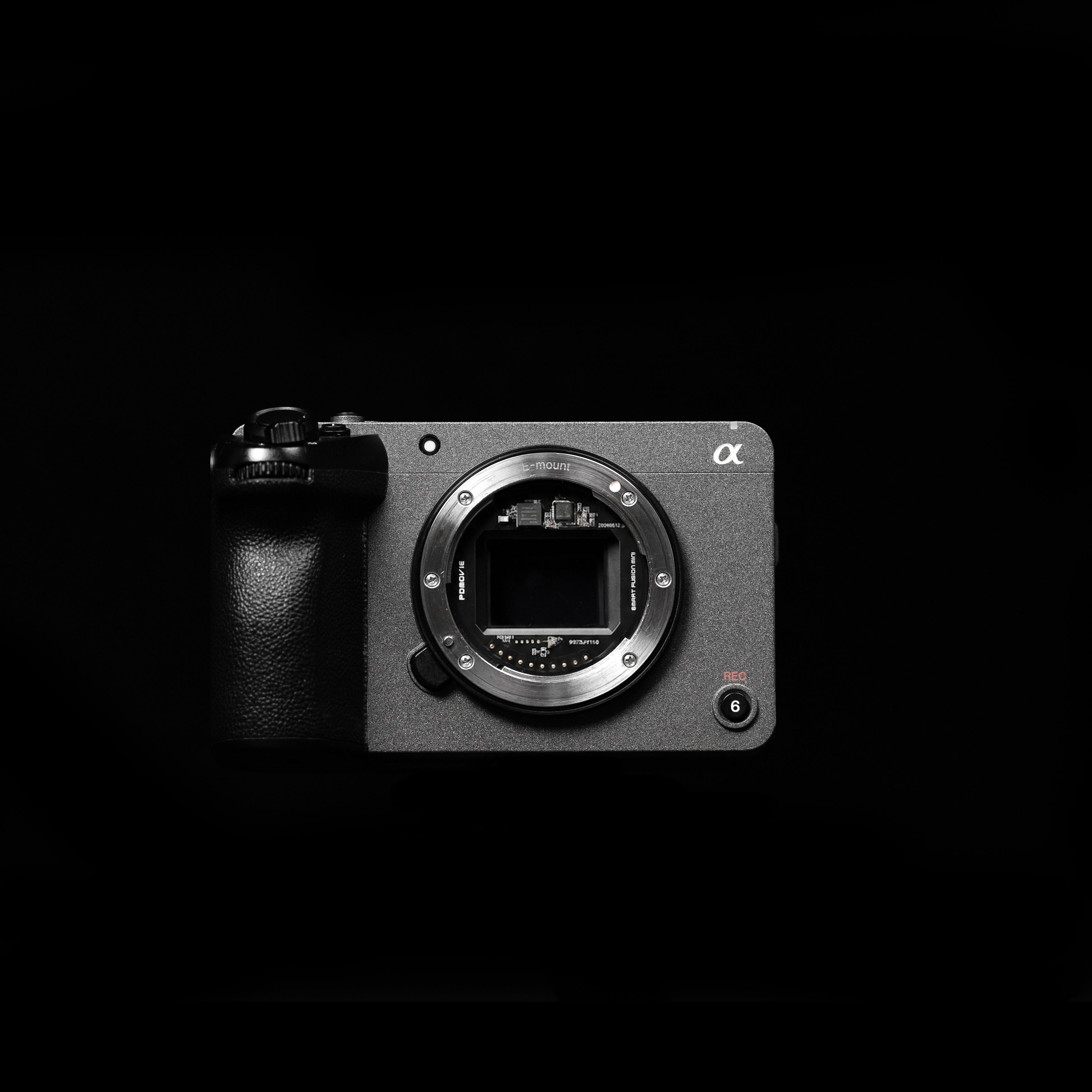

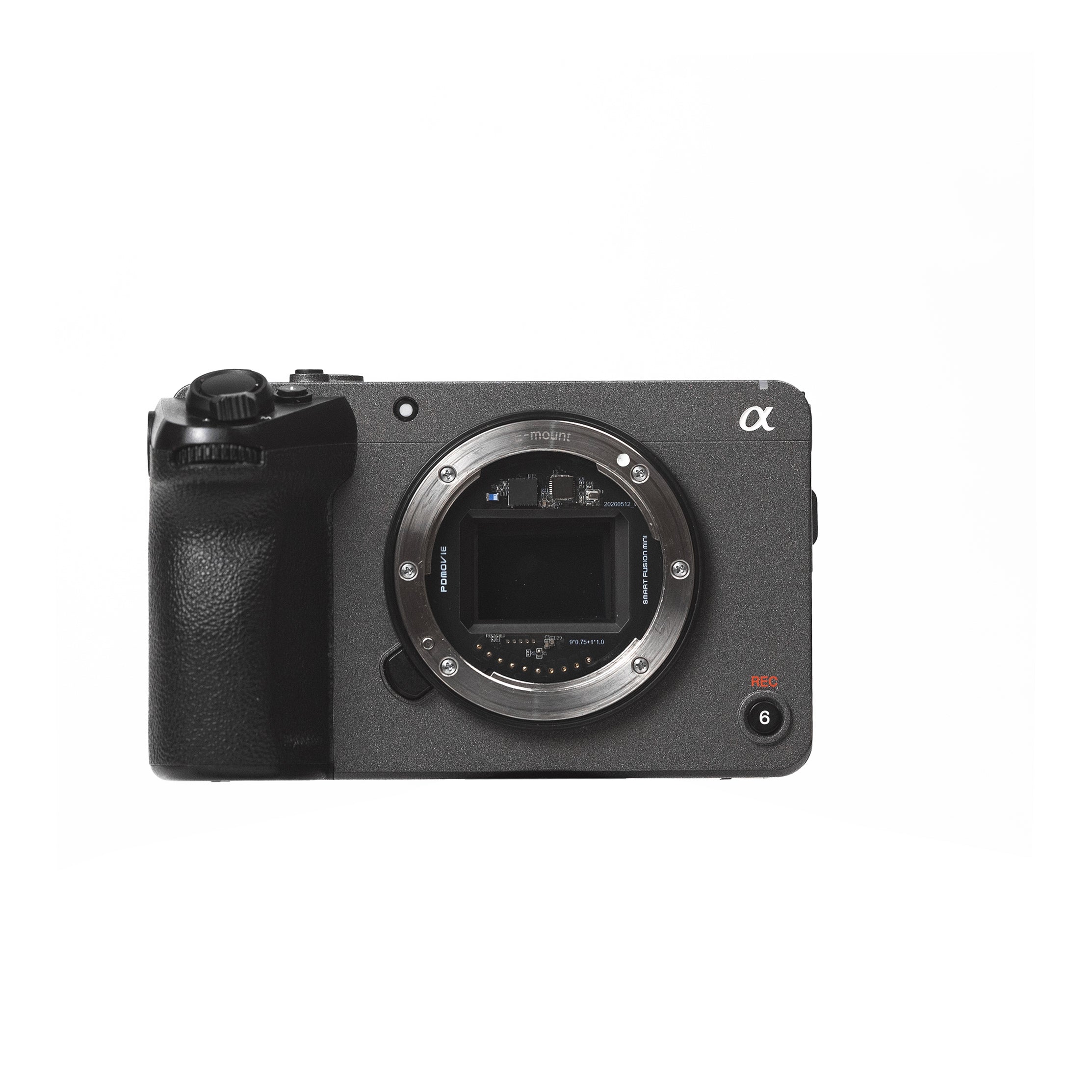

Simply place SMART FUSION inside the Sony E-mount to complete the installation. It is powered directly by the camera body, with no additional battery required. Once the camera is turned on, SMART FUSION starts automatically, providing stable communication support between the LIVE AIR 4 SMART LiDAR motor and Sony cameras.
Native-Like Focus Control
Any focus mode supported by Sony cameras, such as Wide AF, Spot Focus, Zone Focus, Focus Lock, and Tracking, can be used just like with a native autofocus lens. You can control focus by tapping the screen or half-pressing the camera shutter button.
Currently, SMART FUSION only supports Sony Alpha and FX series cameras with a traditional locking E-mount, such as FX3, FX30 and similar models. It allows the LIVE AIR 4 SMART LiDAR motor to control native E-mount manual focus lenses, or PL cinema lenses mounted via an E-to-PL adapter. More camera brands and models may be supported in the future.
More updates will be coming soon!
Size: DIA 46.7 mm × THK 0.6 ›mm
Weight: 1.2 g
Connection：Bluetooth
Power Supply: Powered by the camera
Supported Motor Model: LIVE AIR 4 SMART PD-BTMP-SPM
1. What is the difference between the previously released SMART FUSION and the current version?
The previously released SMART FUSION was more like a lens adapter, but it required users to modify the original structure of the Sony camera body, which could potentially cause certain concerns or impact.
The new version, however, is simply a compact circuit board with integrated electronic components. It does not affect the camera body structure during use. In addition, it helps users save both cost and installation time.
After carefully considering all customer feedback and evaluating multiple factors, we ultimately decided to move forward with the new version of the SMART FUSION solution.
2. Does SMART FUSION have a battery? How is it powered?
SMART FUSION is powered directly by the Sony camera and does not contain a battery. We have implemented voltage and current protection to ensure that even during long-term operation, it consumes very little power from the camera.
3. Will SMART FUSION affect lens or adapter installation?
No. It will not affect the installation of lenses or adapters in any way.
4. How does SMART FUSION connect to the LiDAR motor? How does the camera control lens focus?

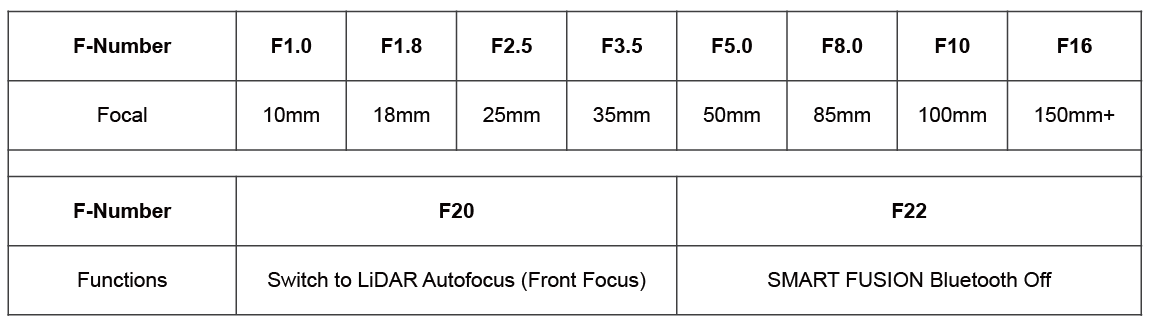

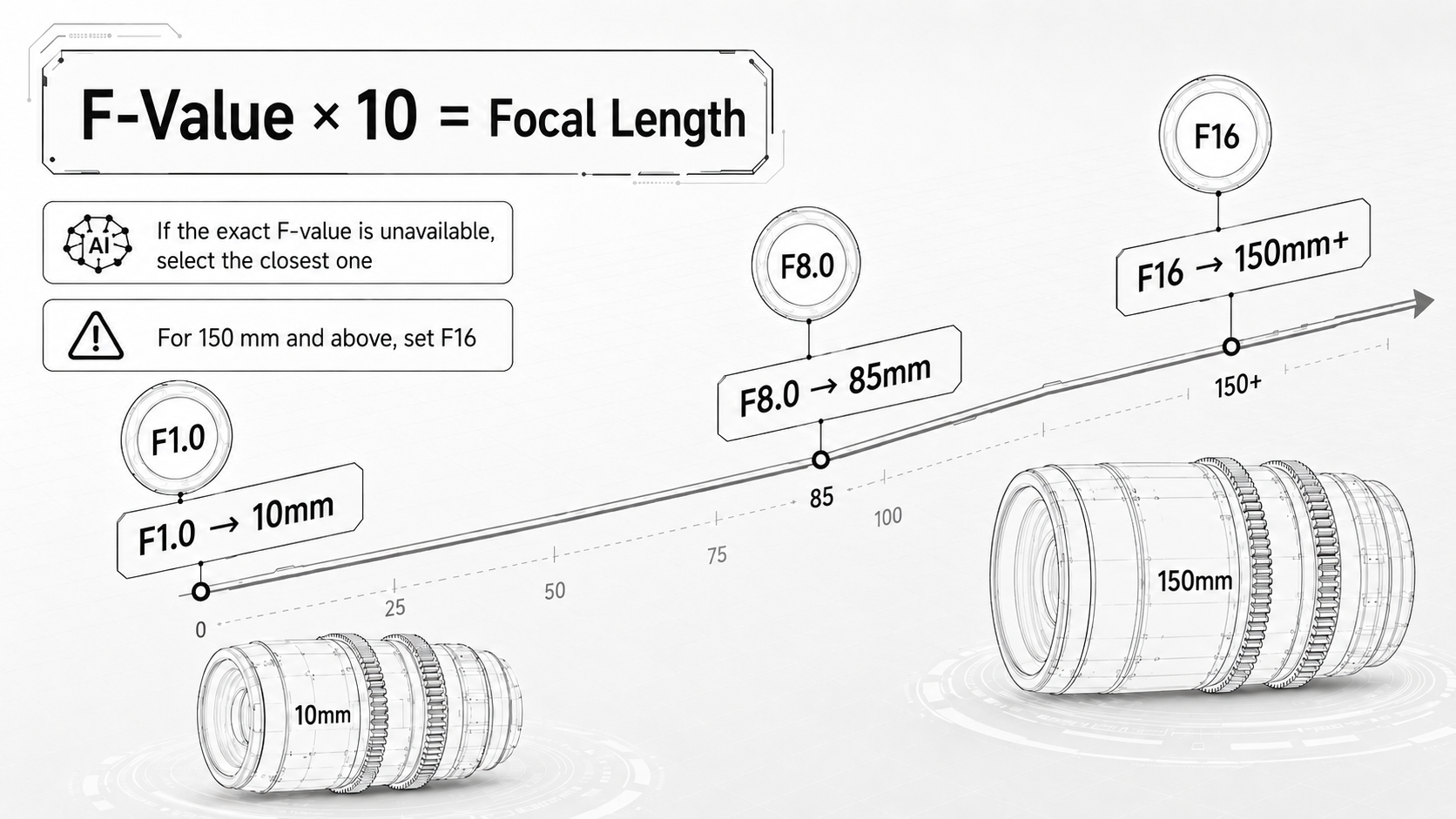

SMART FUSION connects wirelessly to the LiDAR motor via Bluetooth. We continue using the LIVE AIR 4 SMART lens database and utilize AI intelligent algorithms to simulate and generate real lens data. Once the camera is powered on, users only need to enable the autofocus function, and the motor can immediately perform autofocus operations. (The motor needs to learn the lens travel range once after powering on.)
5. Does SMART FUSION only support LIVE AIR 4 SMART motors? Are older motors supported?
Unfortunately, due to hardware limitations, SMART FUSION only supports the LiDAR motors used with LIVE AIR 4 SMART.
6. Which model of LIVE AIR 4 SMART should I purchase?
It depends on your shooting needs. Every model of LIVE AIR 4 SMART includes a LiDAR motor, and all of them can be used together with SMART FUSION for Sony Alpha and FX series cameras.
However, if you need wireless manual focus control, and you may also use the system with cameras from other brands, I would recommend choosing PDL-AFX-SPM or PDL-AFX-RA-SPM. Both models include a wireless handwheel controller, which can better meet your lens control needs during shooting.
If you do not need wireless manual control, you can simply purchase the PD-BTMP-SPM version of LIVE AIR 4 SMART. It can meet your Sony camera focus control needs when used with SMART FUSION. At the same time, if you also use it with non-Sony cameras, the LiDAR autofocus function built into the motor itself can also be a great support for your shooting.
Learn more about LIVE AIR 4 SMART
SMART FUSION Officially Begins
After the 2026 NAB SHOW, we immediately held several internal meetings to thoroughly review and reassess the original SMART FUSION concept.
Based on customer feedback from the show, real-world usage scenarios, and the future direction of the product, we ultimately decided to fully optimize SMART FUSION and relaunch it in an entirely new form.
This is not just a simple adjustment, but a revolutionary upgrade in terms of structure, installation, and user experience. We look forward to introducing SMART FUSION as a lighter, more convenient, and safer solution for our users.
SMART FUSION Debuts at the 2026 NAB Show 2026
2026 New Product Launch - SMART FUSION
LIVE AIR 4 SMART New Member SMART FUSION
Native Sony "E" Mount Smart Adapter. Enhanced by Sony native portrait lock and high-speed LiDAR hybrid autofocus for ultra-fast portrait focus lock.
• Compatible with mainstream Sony Alpha and FX series cameras.
• Directly drives the LIVE AIR 4 SMART motor using native phase detection data.
• Supports wireless and wired communication, with full compatibility with native camera autofocus features (Real-time Recognition, Real-time Eye AF, Touch Tracking, etc.).
• Native E mount architecture, compatible with E mount manual lenses and E-to-PL adapter solutions.
• One-button switching between native camera autofocus, LiDAR autofocus, and manual focus control.
• USB-C expansion port, unlocking more possibilities for the future.
Pricing:
Regular price: $199
Pre-order price: $169
Existing LIVE AIR 4 SMART users receive an additional $30 discount.
Pre-order availability and more SMART FUSION details will be announced soon. Stay tuned for our latest updates!
