3D LOOK
Feature:

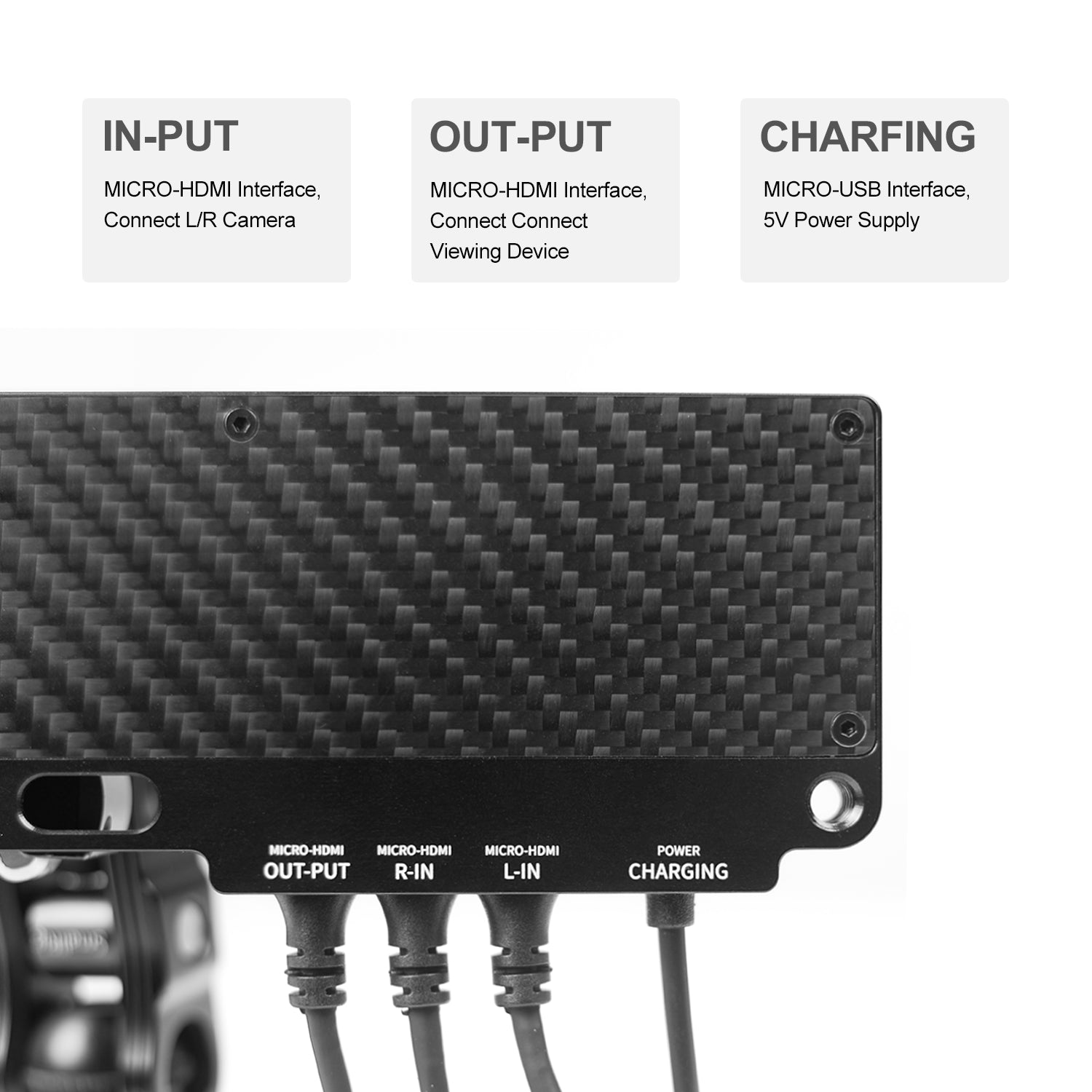

1. Receive HDMI video signals from two cameras.
2. Synthesize and output 3D stereoscopic video signals in five formats via HDMI:
- Anaglyph 1920 x 1080 60P (Can be viewed directly in 3D with Anaglyph glasses)
- Full Side by Side 1920 x 1080 60P (Used for on-site viewing of the actual scene and composition synchronization)
- Full Side by Side (CROP) 1920 x 1080 60P (Used for precise monitoring and adjusting the alignment and synchronization of both cameras)
- Full Side by Side 3840 x 1080 30P (Can be viewed in 3D with AR glasses)
- Half Side by Side 1920 x 1080 60P (Can be viewed in 3D with AR glasses or 3D monitors)
3. Type-C power input, 2.5W 7–12V input.
Specifications:
Size: L 112mm * W 58mm * H11mm
Weight: 88g
Package list:
3D LOOK SYNTHESIZER * 1
MICRO HDMI Cable(0.5m, 0.6m, 0.8m) *3
USB-C Power Cable 1m * 1
Buyers pay your own taxes.
Choose options

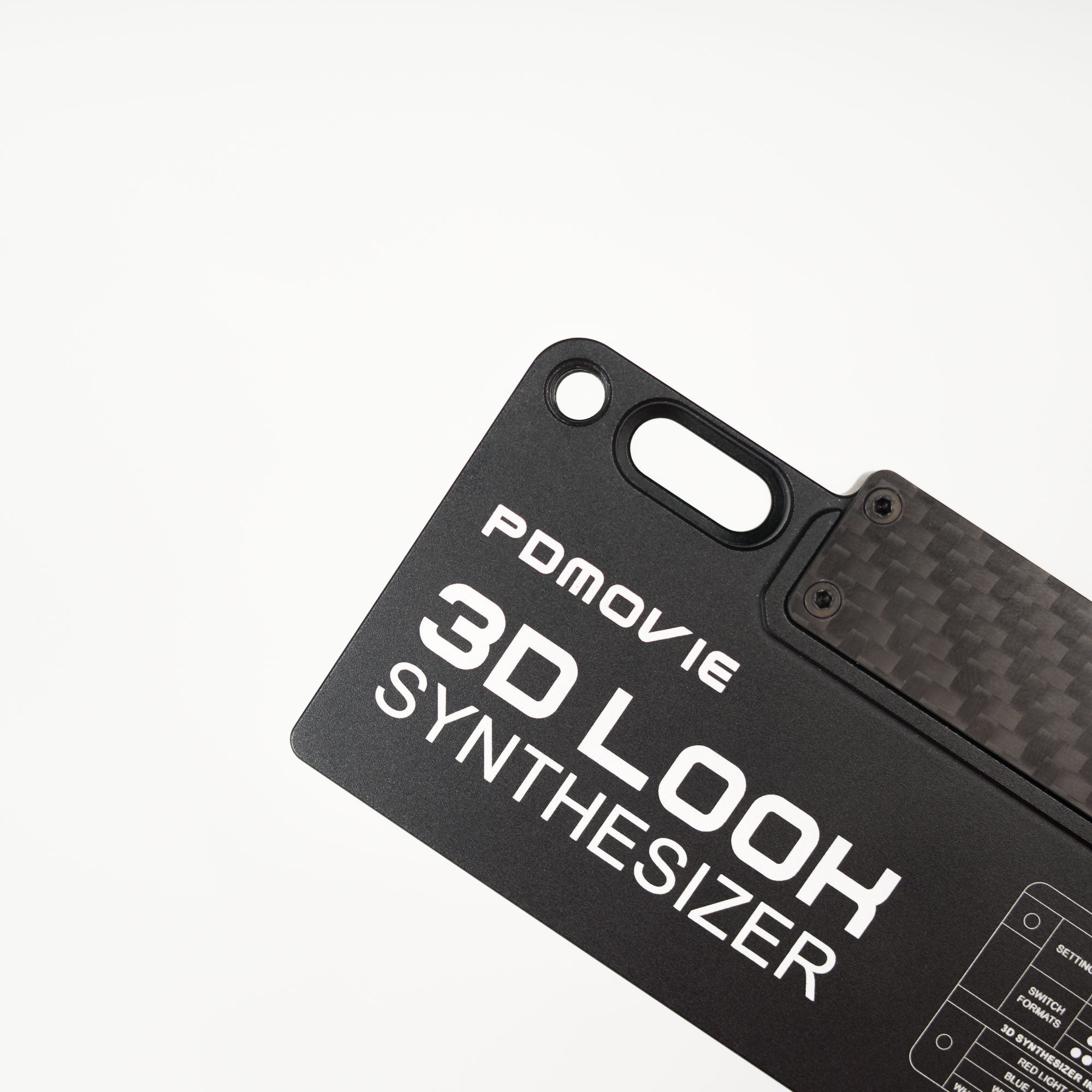

3D LOOK is an exceptionally lightweight yet powerful 3D stereoscopic image processing system. It is capable of capturing video signals from two cameras, synthesizing them, and outputting a variety of high-quality video formats tailored for 3D filming. Whether you are using a vertical stereoscopic setup or a side-by-side 3D filming rig, it will undoubtedly become a valuable asset to your 3D/Spatial filming projects.
Ultra-light & Ultra-thin

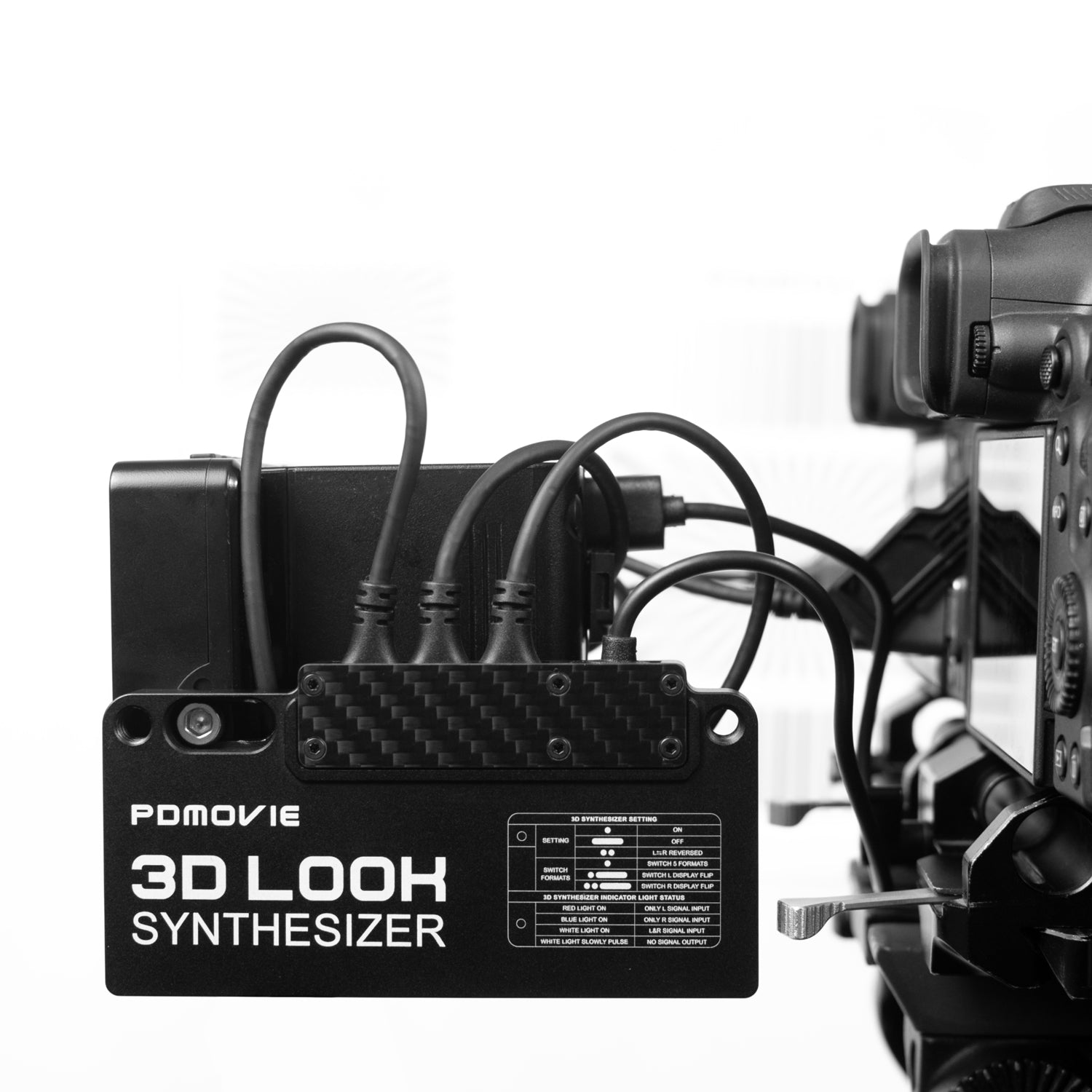

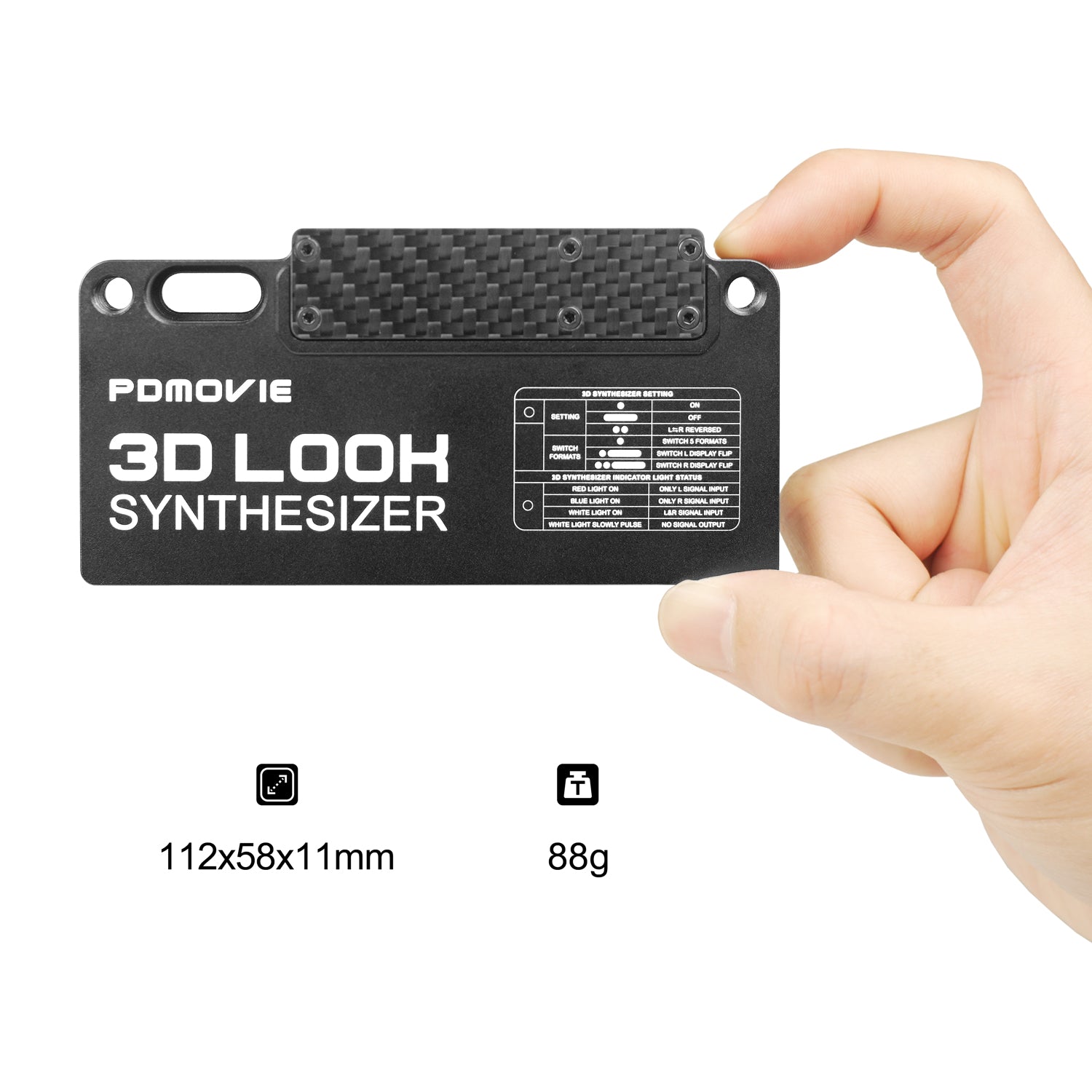

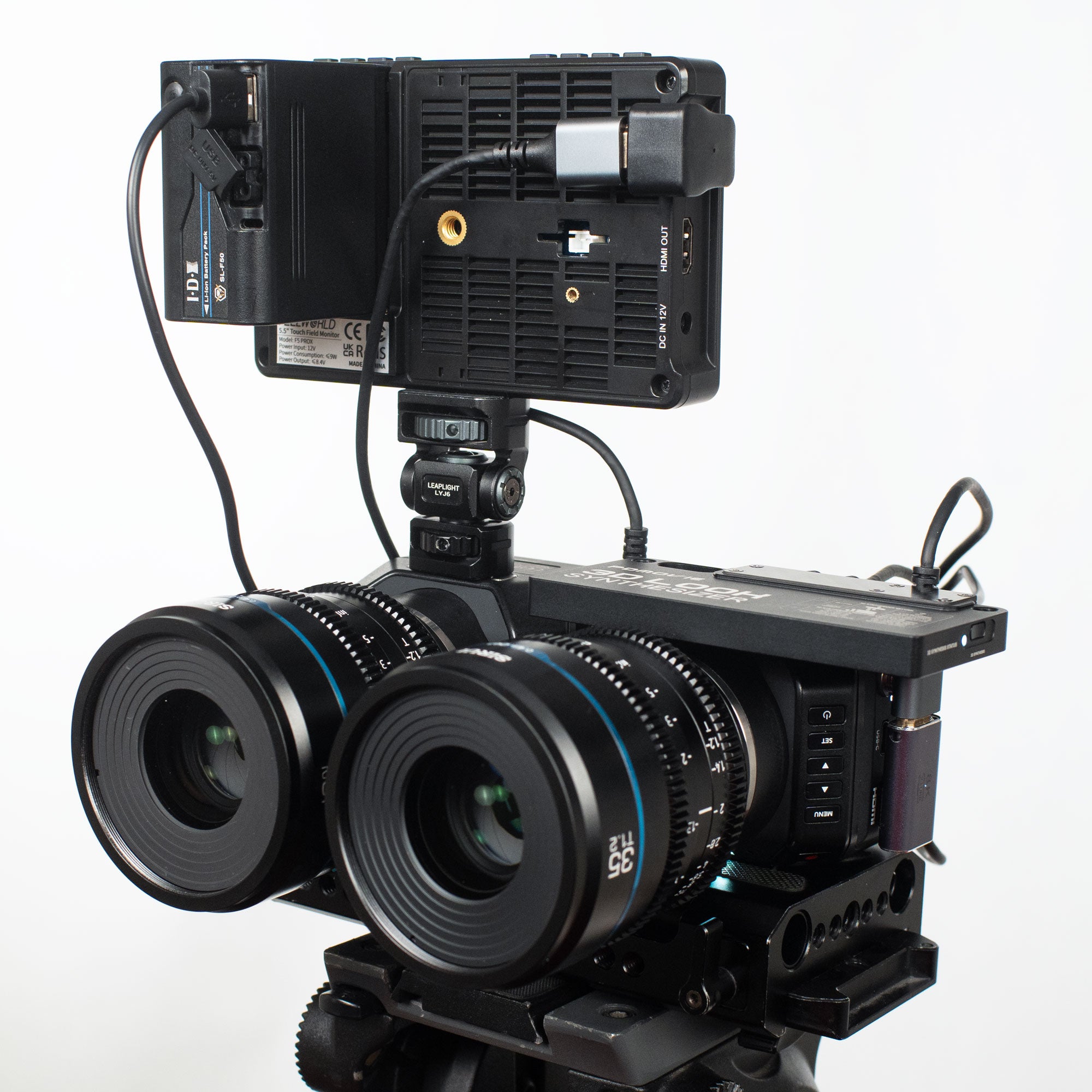

You can effortlessly install 3D LOOK onto your 3D stereoscopic filming rig. Weighing just 88g, 3D LOOK features an ultra-slim body measuring 112 * 58 * 11mm, and it comes equipped with a standard 1/4-inch screw hole and a screw fixing slot.
3 Real-Time Stereo Formats

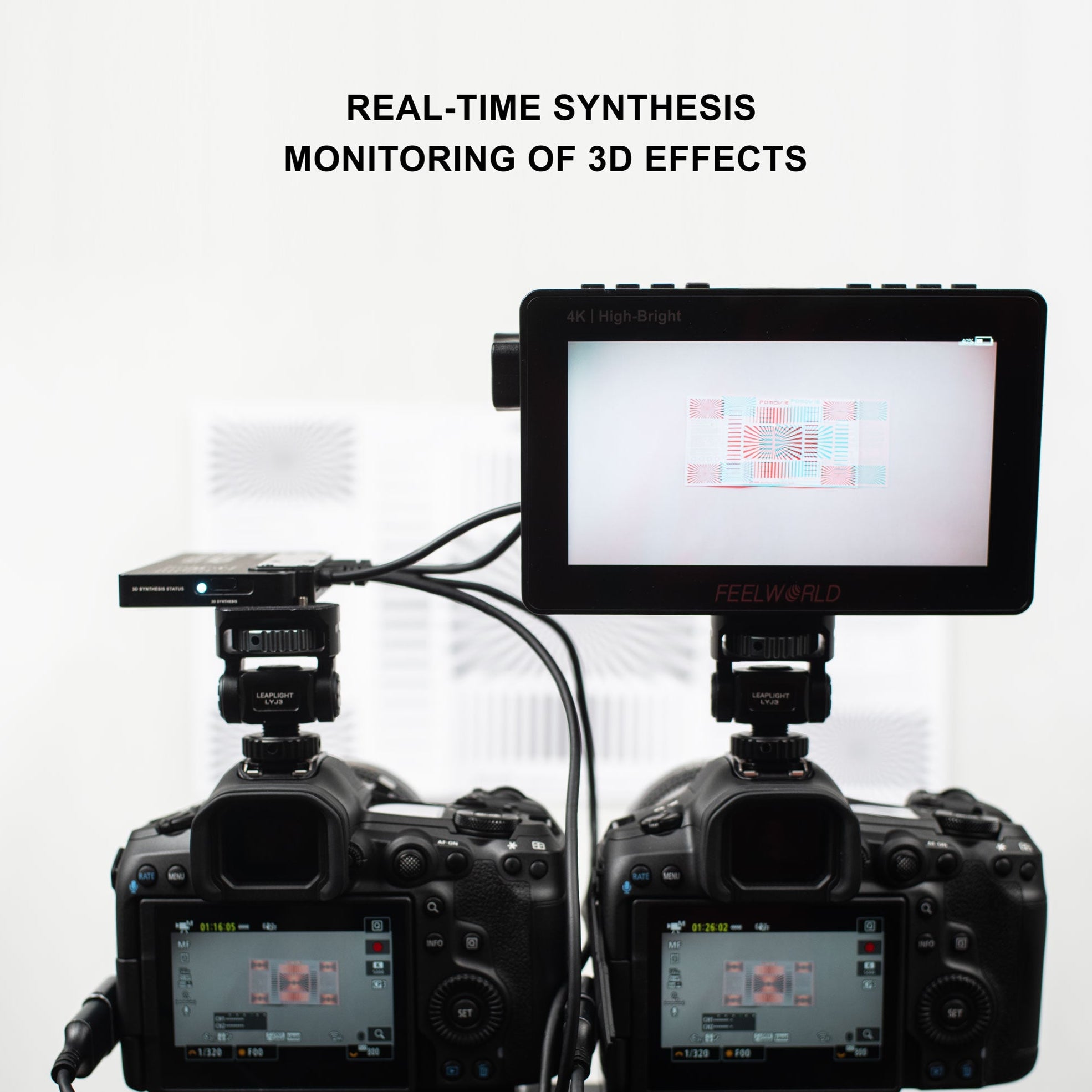

3D LOOK can output five different video signal formats, three of which are stereo video signals suitable for real-time 3D effect monitoring. You can switch between these stereo video signals at any time based on your monitoring needs.
Anaglyph 1920x1080 60P
Half Side by Side 1920x1080 60P
Full Side by Side 3840x1080 30P

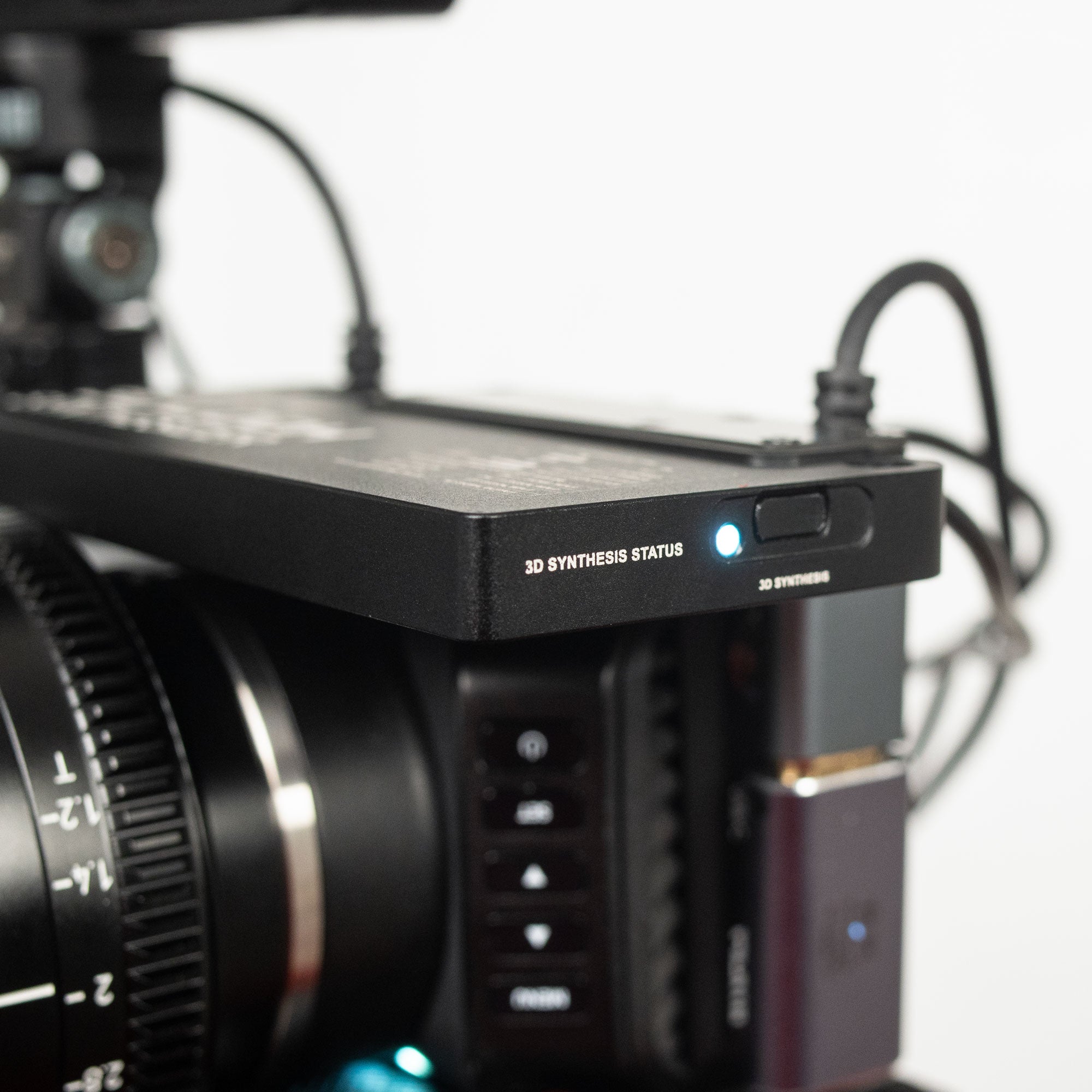

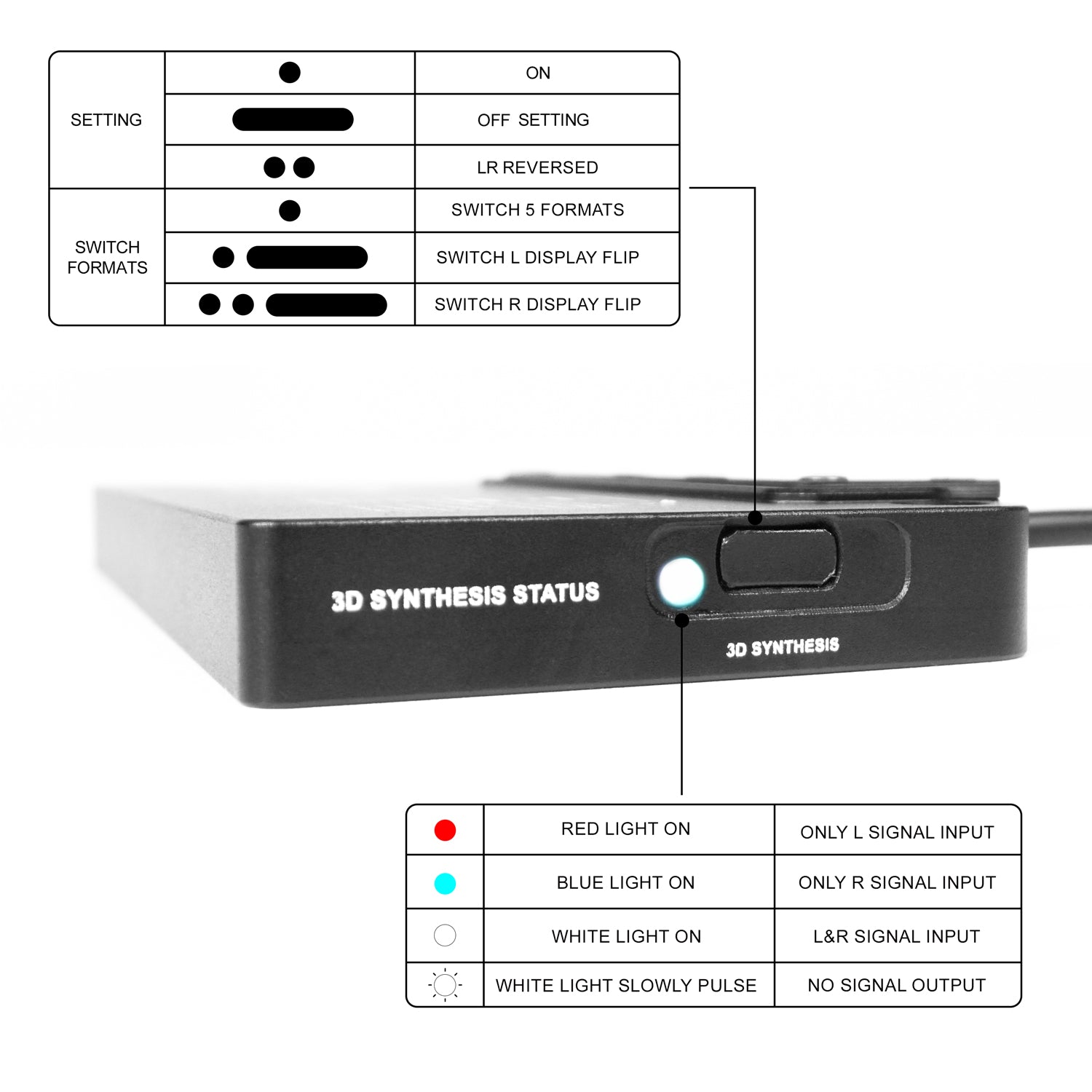

One Button, One Light
You can determine the startup status and current video signal input of 3DLook through the indicator light. With the button, you can easily switch stereo video signals, mirror, rotate, or swap the L and R images.
